Insights

Watch your planogram's numbers change as you work: totals, space-to-sales breakdowns, and item data, live beside the shelf instead of in an exported report.

Insights are live, interactive Reports in a panel beside the planogram. Open one with View → Insights. Each time you choose it, another Insights view opens, so you can watch several sets of numbers at once.

The shelf colored by a Breakdown, which compares each category's share of weekly sales to its share of rack area, alongside the Plan's Aggregates.

Why Use Insights

  • Answer questions in the room. Insights recalculate whenever the Plan changes. Move a product or change its facings during a line review, and the totals and shares update in front of everyone.
  • Catch space-to-sales gaps. A Breakdown can compare each category's share of sales with its share of the shelf, then color the shelf to match, so over- and under-spaced segments stand out.
  • Total a whole account. With a Project open, add up Aggregates and Breakdowns across every Plan in it, such as all of one retailer's stores.
  • Count fixtures before you order. The Fixture Bill of Materials lists every fixture in scope with its quantity.

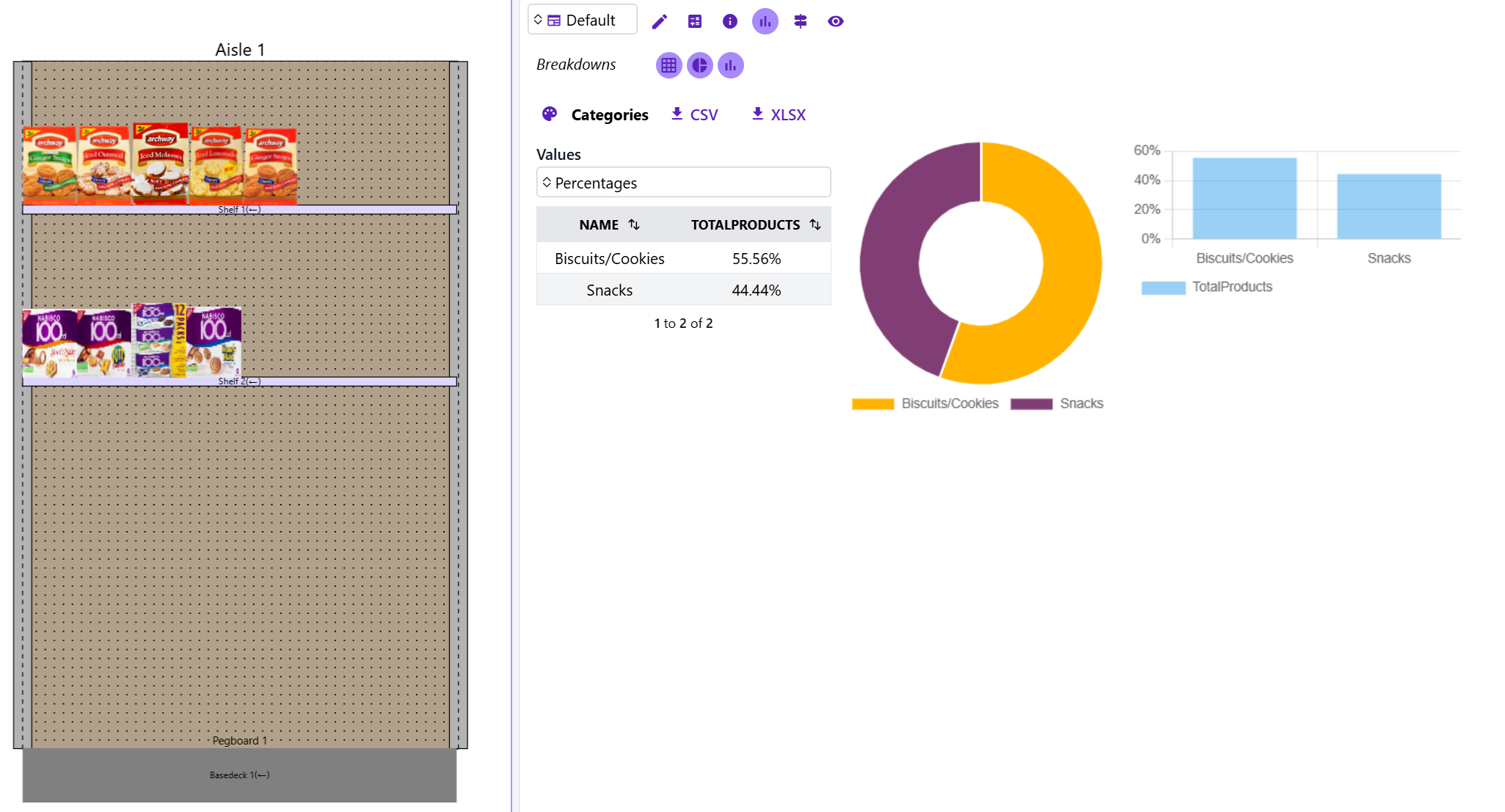

Moving products on the shelf: the Insights Aggregates and Breakdown on the right, and the Comparison differences on the left, update as the Plan changes.
Tip: Insights use the same Report Property Sets as Reports, so the numbers you watch while you work are the numbers that print in the report you send.

Choosing What Insights Show

Pick a Report Property Set from the dropdown at the top of the view. It decides which Properties, Aggregates, and Breakdowns the view can show. The button beside it opens the Report Property Set editor.

The sample sets that ship with every site cannot be edited. Choose Create a Copy to make your own version. If an expression in the chosen set has an error, the view lists each one by name instead of showing results.

You can also ask Smart POG a question such as "How is shelf space split between categories?" The answer opens in Insights as an unsaved set, which you can Save to keep or Discard.

Panel Controls

The buttons along the top of the view control what it includes:

ButtonWhat it does
PropertiesShows or hides the table of per-Position Properties.
AggregatesShows or hides the Aggregate totals.
BreakdownsShows or hides the Breakdowns.
Fixture Bill of MaterialsAdds every fixture in scope with its quantity. Unlike the buttons above, this re-runs the report rather than hiding a section, so it takes a moment to appear.
POPIncludes POP displays, such as signs and header signs, in the results.
Combine PlansAppears with a Project or Store Plan open. Calculates Aggregates and Breakdowns across all the selected Plans together.
Choose fieldsLists every Property, Aggregate, and Breakdown in the set as a checkbox, so you can pick exactly which ones the view shows.

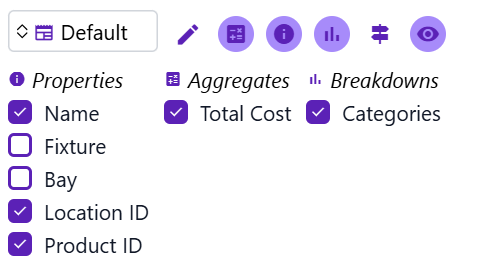

The checkboxes for choosing which Properties, Aggregates, and Breakdowns an Insights view shows.

Insights Across a Project or Store Plan

With a Project or Store Plan open, a Plans dropdown chooses what the view covers: the entire Project or Store Plan, only the current Plan, or a selection of Plans. Turn on Combine Plans to total the Aggregates and Breakdowns across them.

An Aggregate whose scope is too large to show reads N/A. The Fixture Bill of Materials follows the same Plans selection, so choosing an entire Project totals the fixtures of every Plan in it.

Breakdowns

A Breakdown divides the display into segments, such as categories, and shows each segment's share of one or more metrics, such as weekly sales and rack area. Reading two shares side by side is how you spot space that is out of line with sales.

Columns and chart labels use any display names given in the Report Property Set, so a metric set up as cost * FacingsTotal can read as Inventory Cost.

A category Breakdown on an auto parts plan, with the shelf colored to match. Cabin Air earns more than a third of weekly sales on a much smaller share of the rack.
  • and show the Breakdown's table, its chart, or both.
  • Values sets the table to percentages, raw values, or both. Click a column heading to sort by it.
  • switches the chart between a doughnut and a bar chart. With two metrics, the doughnut draws one ring for each.
  • CSV and XLSX download the Breakdown as a file.
  • colors the Positions in the current Plan by segment. The colors match the chart, so it doubles as a legend for the shelf.
Tip: If the colors hide too much of the packaging, lower Position Color Opacity under File → Settings → Views. It sets how strongly every coloring view, including heatmaps and comparisons, covers each Position, so product images show through.
