Heatmaps

Color every product on the shelf by sales, margin, or any metric you track, so winners, laggards, and misallocated space stand out at a glance.

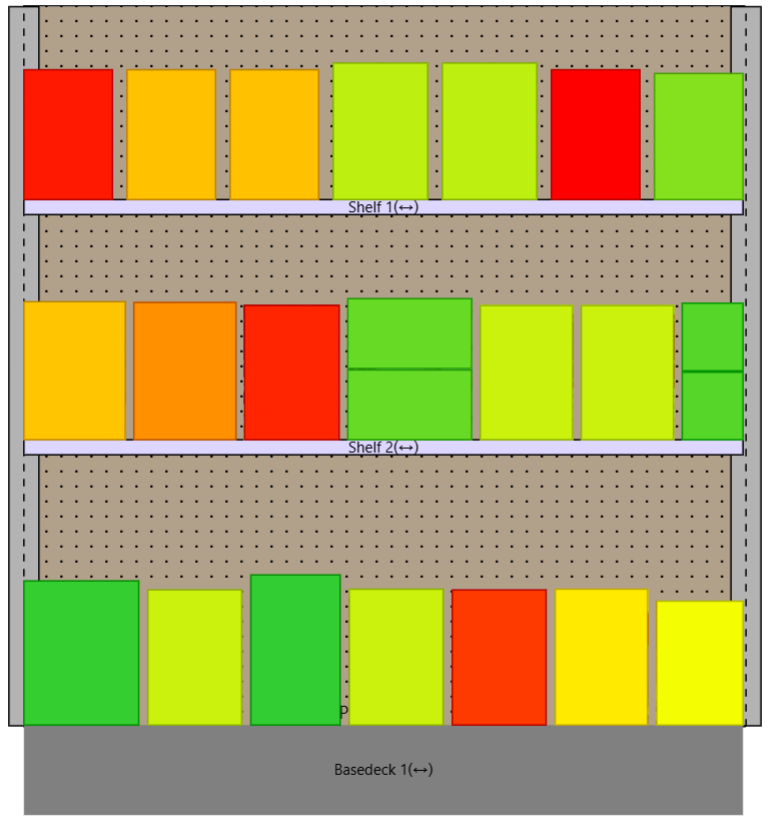

Heatmaps color each Position in a Plan by its value, from red for the lowest to green for the highest, through yellow. The colors can be changed for each heatmap.

Heatmaps in a Line Review

A heatmap turns a shelf into an argument. Whether you are proposing a reset or approving one, it shows what is earning its space before anyone opens a spreadsheet.

  • Make the case for more facings. Color by sales, and a top seller squeezed onto a single facing stands out against slower items with more room.
  • Find the bottom sellers first. Rank items to color the bottom 20%, then propose replacements before a buyer asks for cuts.
  • Set a pass/fail bar. A fixed range, such as anything under $500 a week in red, shows at once which items miss your threshold.
  • Use the account's own numbers. Load Store Data to color by a retailer's or a store cluster's sales rather than national averages.
Tip: Turn on Labels so the number prints on each product, then export Images or a Report. The active heatmap stays on in the exported images.

Using Heatmaps

Heatmaps are Customizable, and can be bound to any data or Calculation, including catalog data, Dynamic Fields, or more granular Store Data. To customize Heatmaps, click the button beside the dropdown.

Open the Heatmap panel from View → Heatmaps, and choose the current heatmap from the Heatmap dropdown. The panel shows the heatmap's statistics along its color gradient: Minimum, Average, Maximum, and a marker for the Median. Blue, which isn't on the gradient, means no value: the heatmap's value for that product isn't a number, or in a Store Plan, there are no products in that part of the bay.

You can also ask Smart POG for one, such as "Show me a heatmap of weekly sales." It colors your plan right away as an unsaved heatmap, which you can Save to keep or Discard.

In a Store Plan, a heatmap colors bays instead of individual products: slices of each bay (12 in or 30 cm long, or as long as you set), or whole bays, Aisles or sections, as Color by in the Heatmaps panel says. So its expression must be an aggregate, such as Sum or Avg.

It is common to use a Heatmap in conjunction with Labels, so colors and numbers can be seen together.

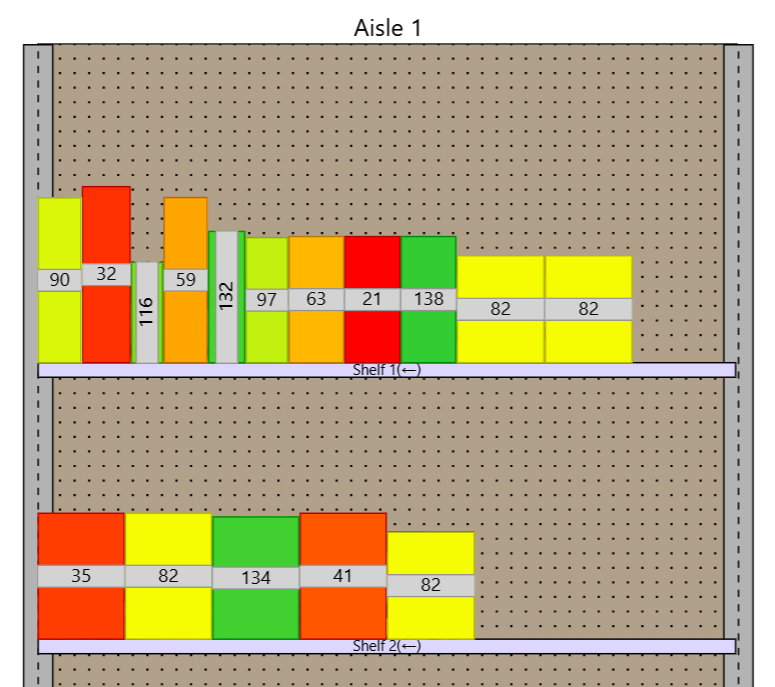

A Heatmap displaying sales data, with a corresponding Label

Relative vs Fixed Ranges

A Heatmap's range may be Relative (default), or Fixed.

A Relative-Range Heatmap colors the item with the lowest value found the "Minimum Color" (default red), the item with the highest value found the "Maximum Color" (default green), and everything else in between.

A Fixed-Range Heatmap lets you set a lower bound, an upper bound, or both. Anything under or over the bounds gets the minimum or maximum color. Fixed-Range Heatmaps suit pass/fail metrics, for example identifying items performing under a set threshold, such as a number of turns or dollars per week.

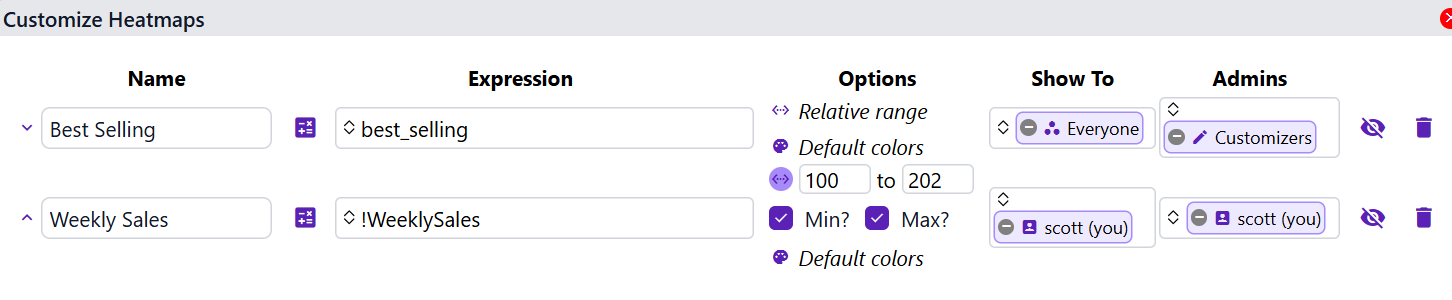

Heatmap range can be edited in the Customize Heatmaps dialog, by clicking the button, then checking the Min and/or Max checkboxes, and entering minimum / maximum range values in the inputs.

The Best Selling heatmap uses a Relative Range. The Weekly Sales heatmap uses a Fixed Range with a minimum of 500 and no maximum.

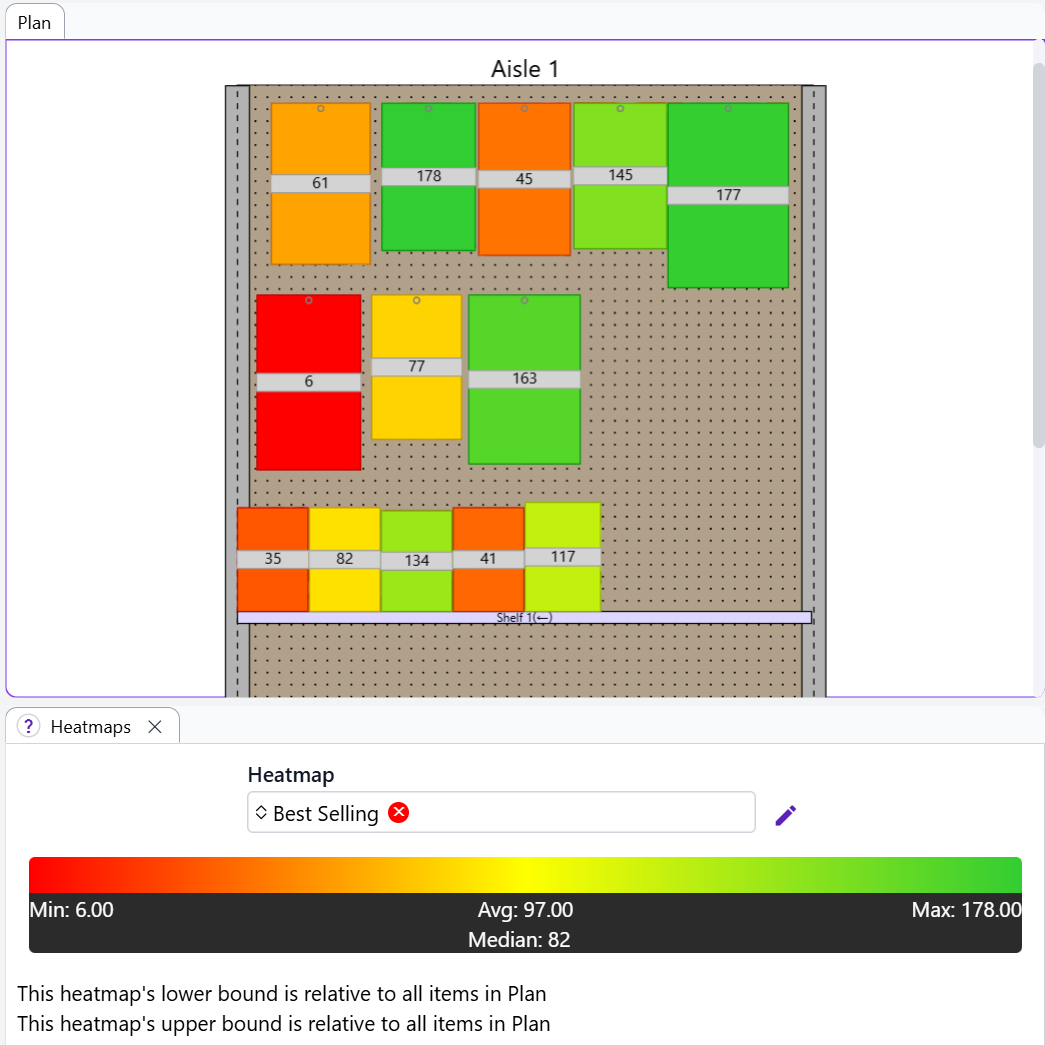

A heatmap with a relative range

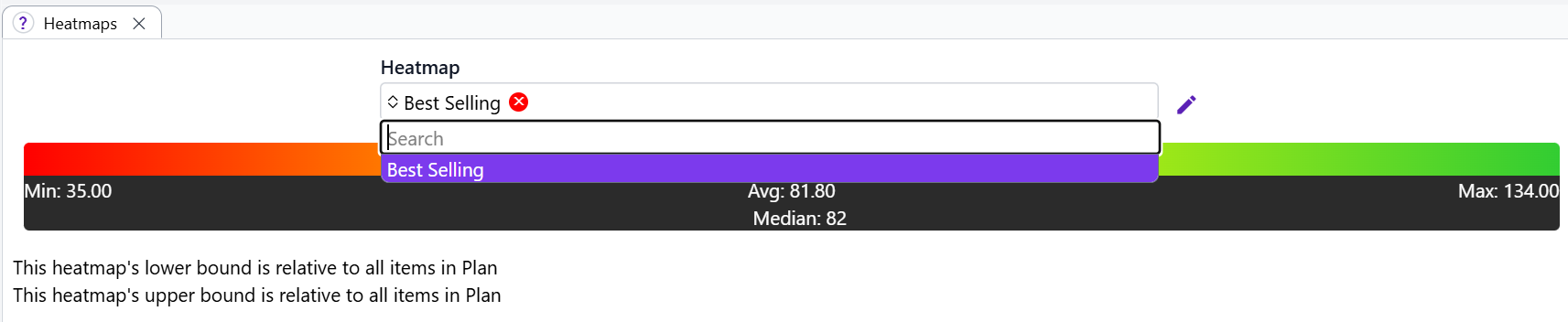

A heatmap with a fixed range

Ranking Items (e.g. Bottom 20% of Sellers)

To color items by how they rank rather than by their raw values, use the PercentRank Calculation function, which ranks each item in the Plan from 0 (lowest) to 1 (highest). For example, an expression of PercentRank(#Sales) with a Fixed Range of 0.2 to 0.8 colors the bottom 20% of items with the minimum color, the top 20% with the maximum color, and everything else in between.

Because ranks are relative to each Plan, every Plan will show roughly the same share of each color. Use raw values instead when comparing performance across Plans or stores.

Heatmap Colors

Heatmap colors may be customized by clicking the button in the Customize Heatmaps dialog. This lets you set custom colors for Minimum, Midpoint, and Maximum values. If a Midpoint color is not set, it is automatically calculated from the Minimum and Maximum colors.

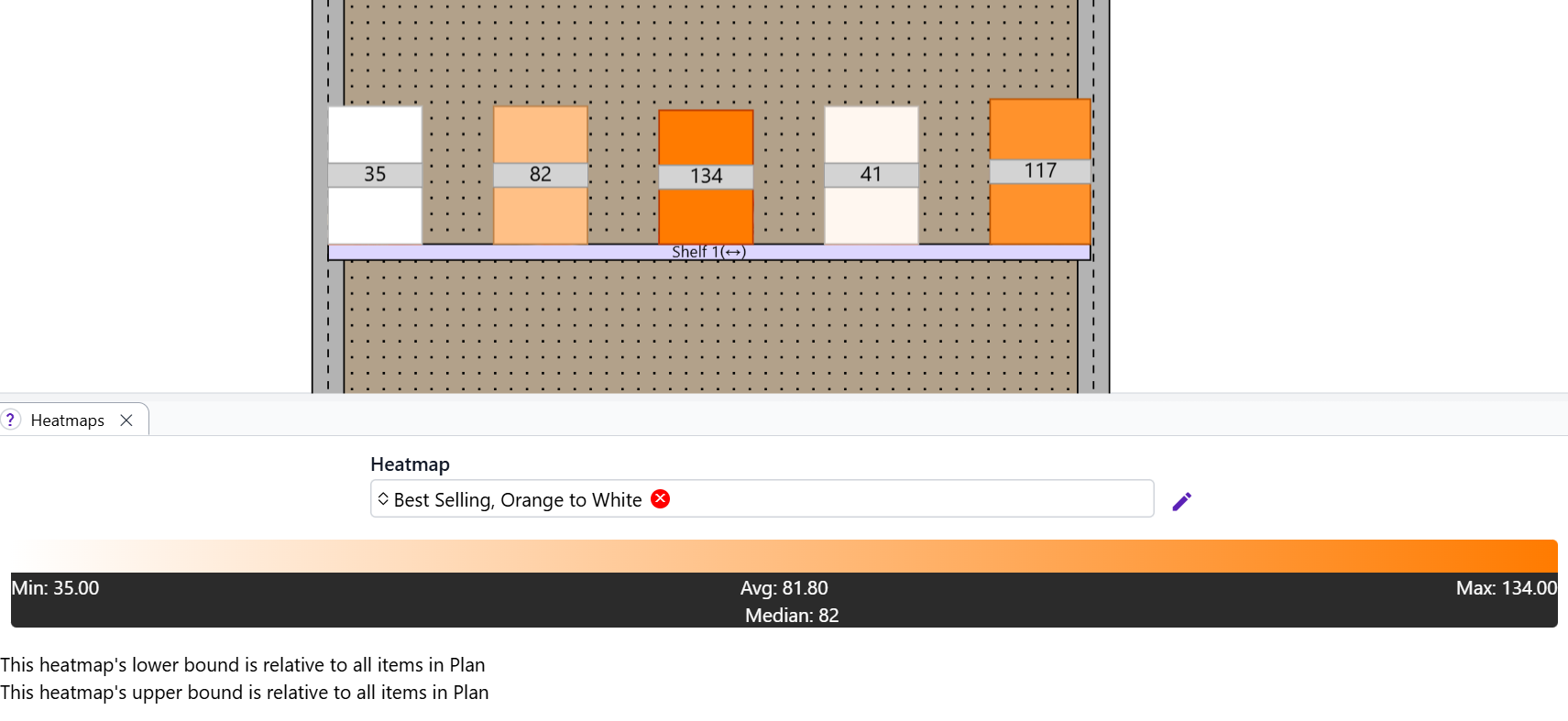

A heatmap with a custom color range defined
A heatmap with a custom color range defined
Tip: If the colors hide too much of the packaging, lower Position Color Opacity under File → Settings → Views. It sets how strongly every coloring view, including heatmaps and comparisons, covers each Position, so product images show through.
