Images
Export presentation-ready planogram images for line reviews and store instructions: a whole Plan, a single fixture, or every bay at once.
Built for Line Reviews and Store Instructions
- Suppliers: drop a clean set into any deck. Export at up to 8x scale, and leave out fixture names and lock icons so buyers only see the shelf. Any active local_fire_department Heatmap stays on in the image, so the data travels with the picture.
- Retailers: show stores exactly what to set. Break by shelves Bay, then add dimensions, shelf notches, and edit_note Labels such as Location ID.
- Export every Plan at once. With a group_work Project open, download every section of every Plan as one ZIP, with your options applied to all of them.
Opening the Images Dialog

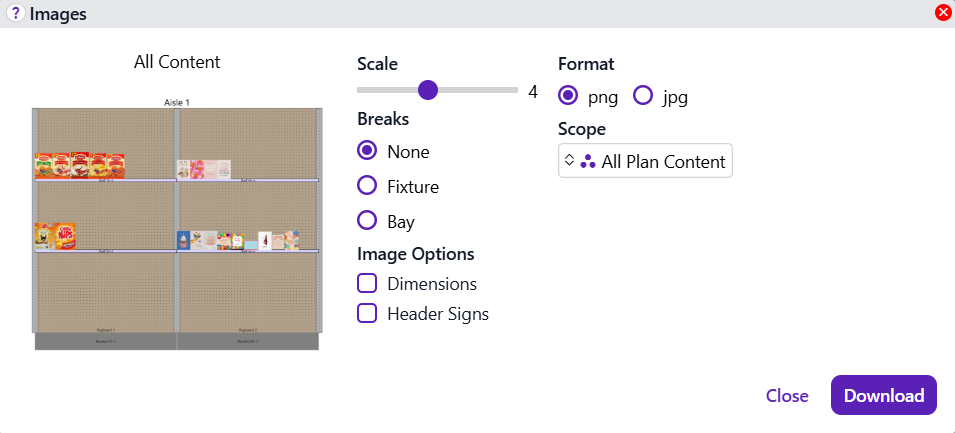

You may create images of your display via:
- File → Export → Images
- Right click on the planogram window and select Export → Images
Right clicking a specific fixture in your planogram and choosing Export → Images will generate images of that fixture only.
Breaks
The Breaks option controls how many images are generated from your planogram or fixture:
- None: generates a single image containing all content in the chosen Scope
- curtains_closed Fixture: generates one image per top-level fixture, such as an Aisle or Surface
- shelves Bay: generates one image per bay

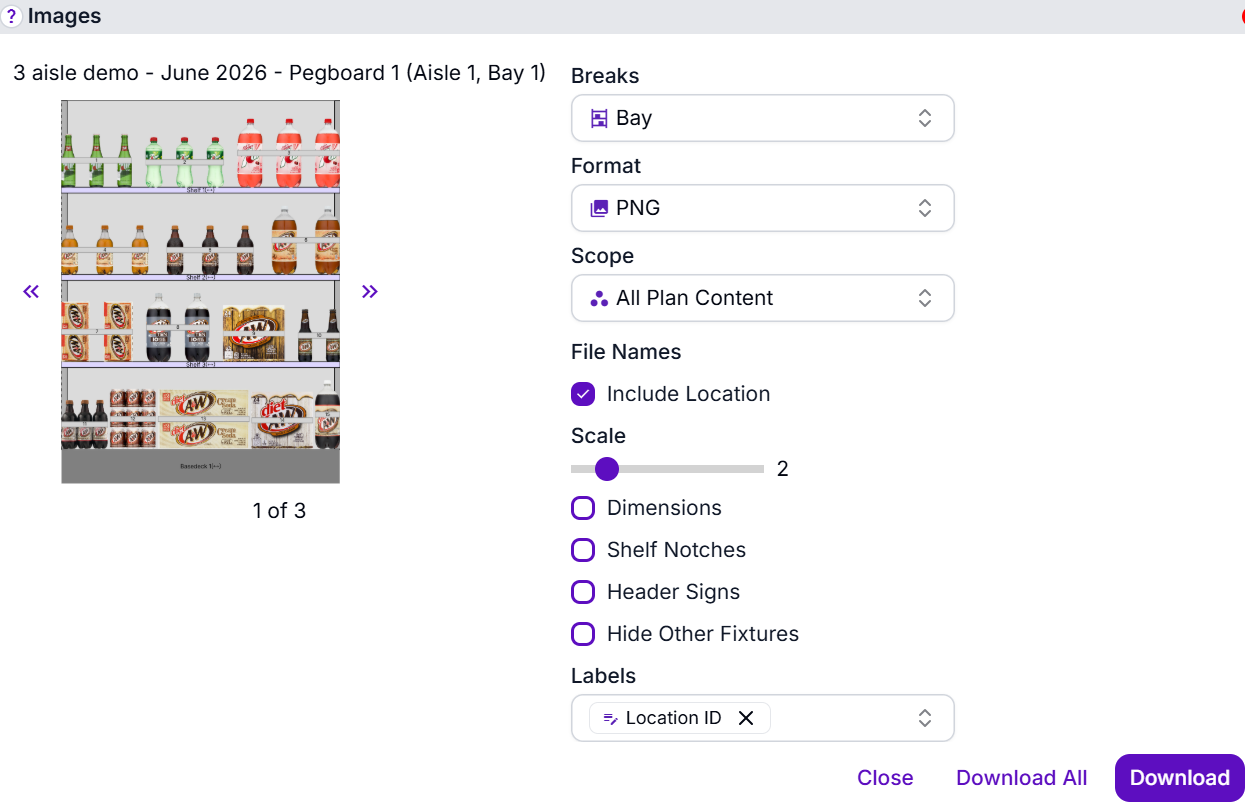

If there is more than one image, swap between them in the preview with the arrow buttons on either side of the current image.
Scope
Scope limits the images to a single top-level fixture. Leave it on All Plan Content to cover the whole Plan. With a Project or Store Plan open, Preview Plan chooses which Plan the preview shows.
Format and Scale
Format chooses between PNG and JPG. Scale runs from 1 to 8. A higher scale gives a larger image and a larger file, and if the preview becomes too large to display, lower it.
Downloading Images
The buttons along the bottom of the dialog widen from left to right. Which ones appear depends on what you have open.
| Button | What it downloads |
|---|---|
| Section Image or Plan Image | The image shown in the preview. It reads Section Image when Breaks or Scope split the Plan into sections. |
| Plan Images | Every section of this Plan, as one ZIP file. Appears when the Plan has more than one section. |
| Project Images or Store Plan Images | Every section of every Plan in the open group_work Project or Store Plan, as one ZIP file, with the options set here applied to each. |
File Names
The preview caption shows the name the image will download as. These options change it:
- Include Location adds a bay's aisle and bay number, as in My Plan - Beverages (Aisle 1, Bay 2). Turn it off for My Plan - Beverages.
- Number Bays Across Plan numbers a bay by its position in the whole Plan instead of within its Aisle, as in My Plan - Beverages (Aisle 2, Bay 7).
- Folder Per Plan gives each Plan its own folder in a Project or Store Plan ZIP, instead of keeping every image together at the top level.
Dimensions
Selecting the Dimensions option will include dimensions in the generated image. These will match the Dimensions View.
Shelf Notches
Selecting the Shelf Notches option draws the notch marks on shelves that are affixed to racks, so the image records which notch each shelf is set to. These match the Shelf Notches View.
Fixture Names, Lock Icons and Layout Type
These three mirror the Show Fixture Names, Show Fixture Lock Icons and Show Fixture Layout Type settings. Each starts ticked or unticked to match your setting, so the preview opens showing the plan you are used to, and unticking one leaves that detail out of the image without changing how you work.
This is how you planogram with names, locks and layout symbols on screen and still hand out images that carry none of them. Because they are image options, they apply to downloaded PNGs and JPGs and to the section images a PDF report embeds alike.
Labels
Labels picks which edit_note Labels print on every position in the generated image, such as Location ID. They override whatever is ticked in the Labels panel while the dialog is open, and your own selection is put back when you close it. A Label that has since been deleted is skipped.
The same picker appears in the Report dialog, where the choice is saved with the report rather than applying only to the image you are generating now.
Header Signs
If you have header signs included in your display (and they are snapped to a rack), checking the Header Signs option will include them in the generated image. This option may be used with the Bay break option.
Other Image Options
- Hide Other Fixtures hides neighboring bays and fixtures when generating an image of a single bay or fixture, so overlapping products from next door do not appear in it.
- Show Section Names and Show Schematic appear for Store Plans, and include each section's name and the floorplan schematic in the image.
