Sections and Layout
Every Plan placed in a Store Plan becomes a square_foot Section: a rotatable block on the topdown canvas that draws the Plan's aisles and surfaces as seen from above. Laying out a store means adding sections and then positioning and rotating them to match the real floor.
Each aisle shows which way its products face: a heavier black line marks the back of its bays, and a small gray arrow points out of its front, beside the aisle's name when the name is on that side. Use them to check that back-to-back gondolas and wall runs face the right way.
Adding Sections
The Add Section button at the top of the Store Plan panel's Sections tab offers three kinds of section:
- Existing Plan: the section shows a Plan that other Store Plans can use too. Edits to it change every Store Plan using it.
- Copy of a Plan: this store gets its own copy of the Plan, made in the Store Plan's sections folder when the Store Plan saves.
- New Gondola: the Gondola Creator builds one from its sides, bays and endcaps, in your session's units. Its Plan is made in the sections folder when the Store Plan saves.
Select a section and the Inspector says whether it's Shared or This store's own. Editing a shared section also asks first, listing the other Store Plans that use it. To give this store its own copy of a shared section's Plan, right-click it and choose content_copy Make a Copy for This Store, or use the button in the Inspector. The copy is made when the Store Plan saves, and Undo takes it back until then.
The same three choices are also in these places:
- Right-clicking empty canvas and choosing add_box Add Section. The new section is placed where you right-clicked.
- The Insert menu, as Section: Existing Plan and so on.

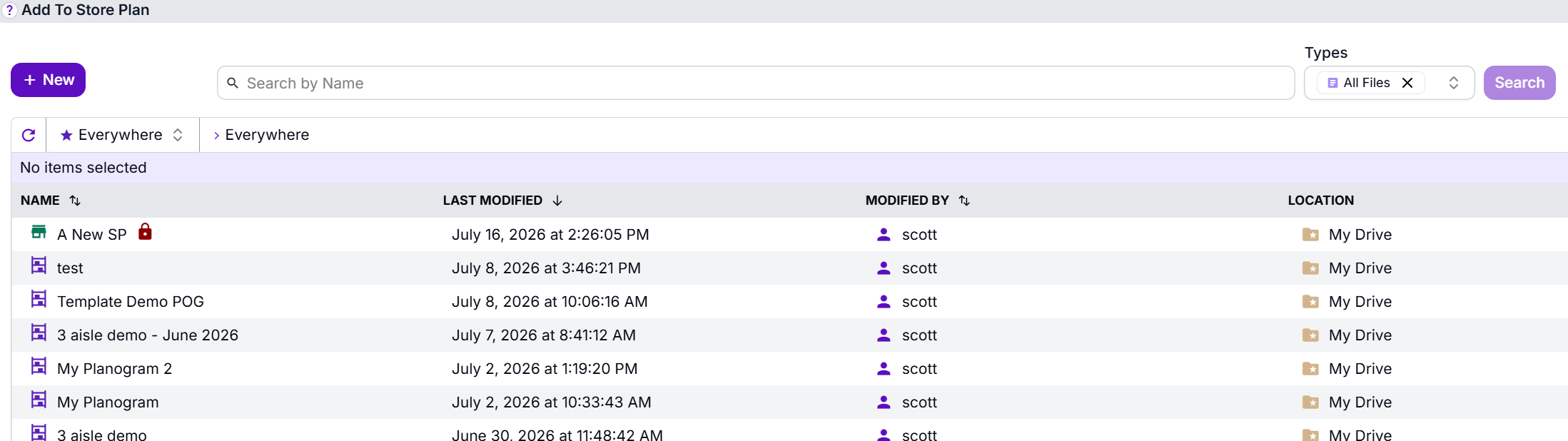

Existing Plan opens a file picker limited to Plan and Store Plan files. Select one and click Add to Store Plan.
The same Plan may be added more than once -- a checkout endcap that appears four times on the floor is one Plan file placed as four sections.
Moving and Rotating Sections

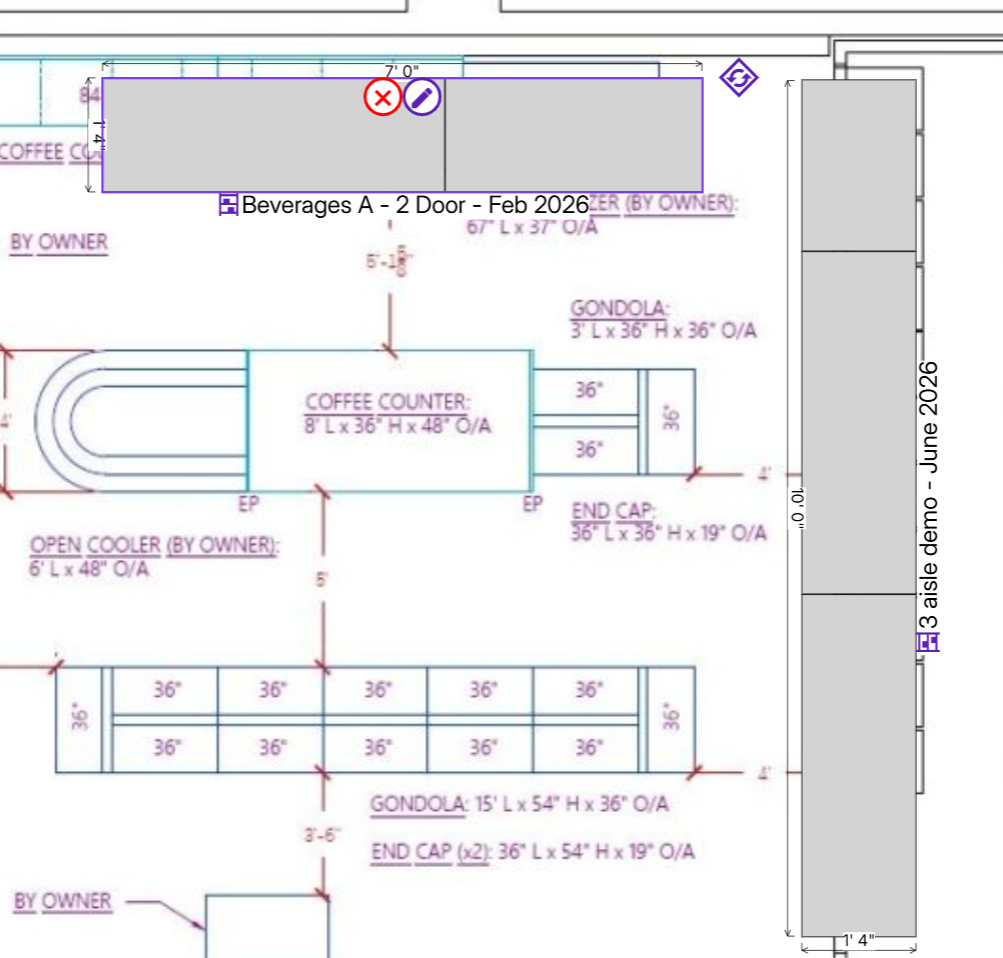

Sections are dragged with the mouse like any other object on the canvas. Selecting a section also shows a rotation handle, so a run of shelving can be set at whatever angle the real store uses. A section turns about its middle, at any angle, and snaps to a multiple of 45° when close to one.
A toolbar just above a selected section (below it, near the top of the view) has its construction Edit, folder_open Open and delete Remove buttons. Read Only mode leaves out Edit and Remove.
Edit puts the section in edit mode, to add and remove its bays and sides and move them. Everything else on the canvas fades and can't be changed, and the Store Plan and Store Data panels wait until you're done. The toolbar then names the section, with Done, which saves its Plan (its tooltip says which Plans it changes), and Cancel, which undoes the edits made there.

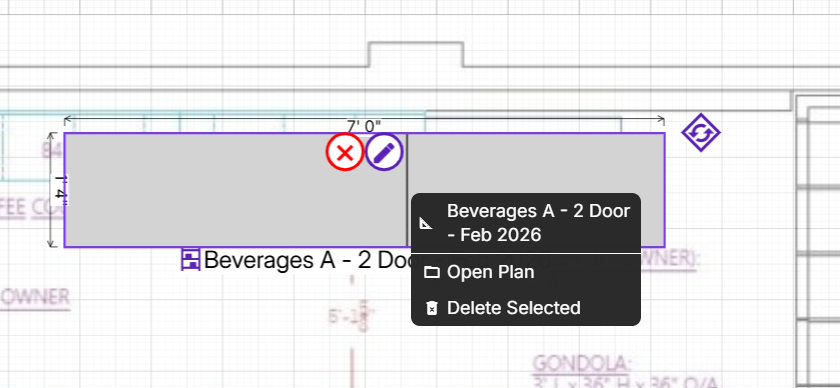

Right-clicking anywhere on a section, its bays included, opens its menu: Edit Section, Open Plan, Make a Copy for This Store, Turn Left and Turn Right (a quarter turn each), adding a label over the bay you clicked, and delete Remove from Store Plan. In Read Only, and while a section is being edited, it leaves out the items that would change the layout.
A section's outline is sized to the Plan it references. If that Plan later grows or shrinks -- an aisle is added, a bay is removed -- the section resizes to match the next time the Store Plan is opened.
Section Names
With Section Names checked in View Options, each section is labelled on the canvas with the name of the Plan it references. When a Store Plan holds both Plans and other Store Plans, each name also has its file type icon. Unchecking it hides every label at once, which is useful for screenshots and for dense layouts.
When the same Plan appears more than once at the same level of the Store Plan, each occurrence gets a number appended to its label -- Endcap, Endcap (2), Endcap (3) and so on. The numbers are assigned from the top-left of the layout to the bottom-right, so they stay predictable, and they appear only where duplicates exist.
Nested Store Plans
A Store Plan can be added to another Store Plan exactly as a Plan can. The nested Store Plan's own sections are expanded in place, and rotations compound: rotating the outer section turns everything inside it as a unit.
This is how a repeated block of the store -- a full grocery aisle, a department, a standard store format -- gets built once and reused. Editing the nested Store Plan updates every layout that includes it.
Opening the Plan Behind a Section
Fixtures and products are edited in the Plan itself, never in the Store Plan. To get there:
- Right-click anywhere on a section and choose folder_open Open Plan.
- Click the Plan's entry in the Sections tab's tree.
- Right-click a fixture in 3d_rotation 3D and view it in 2D -- see Analysis and 3D.
Opening a Plan this way remembers the Store Plan you came from, so after saving your changes you are returned to the store layout rather than left in the individual Plan. The Store Plan panel stays available throughout, letting you move between Plans in the store without going back through File > Open.
Dimensions
Dimension lines in a Store Plan are drawn per aisle rather than per section, so you can read the real footprint of each run of fixtures instead of the bounding box of the file that contains it.
